Anchor glycan cartoons at their reducing ends

These helpers align the reducing end of every glycan cartoon with its anchor in geom_glycan(), scale_x_glycan(), scale_y_glycan(), or guide_glycan(). Use hjust_red_end() for horizontal alignment when orient is "up" or "down", and use vjust_red_end() for vertical alignment when orient is "left" or "right". Because the required justification is calculated separately from each cartoon's rendered bounds, the helpers also work for collections of glycans with different asymmetric branches. Glycan scales and guides use reducing-end justification by default along the axis perpendicular to the drawing orientation; geom_glycan() remains centered by default.

Usage

hjust_red_end()

vjust_red_end()

Value

A reducing-end justification marker accepted by the glycan layer, scales, and guide.

Examples

glycan <- data.frame(
  x = 0,
  y = 0,
  structure = "Man(a1-3)[Man(a1-6)]Man(b1-4)GlcNAc(b1-"
)

ggplot2::ggplot(
  glycan,
  ggplot2::aes(x = .data$x, y = .data$y, structure = .data$structure)
) +

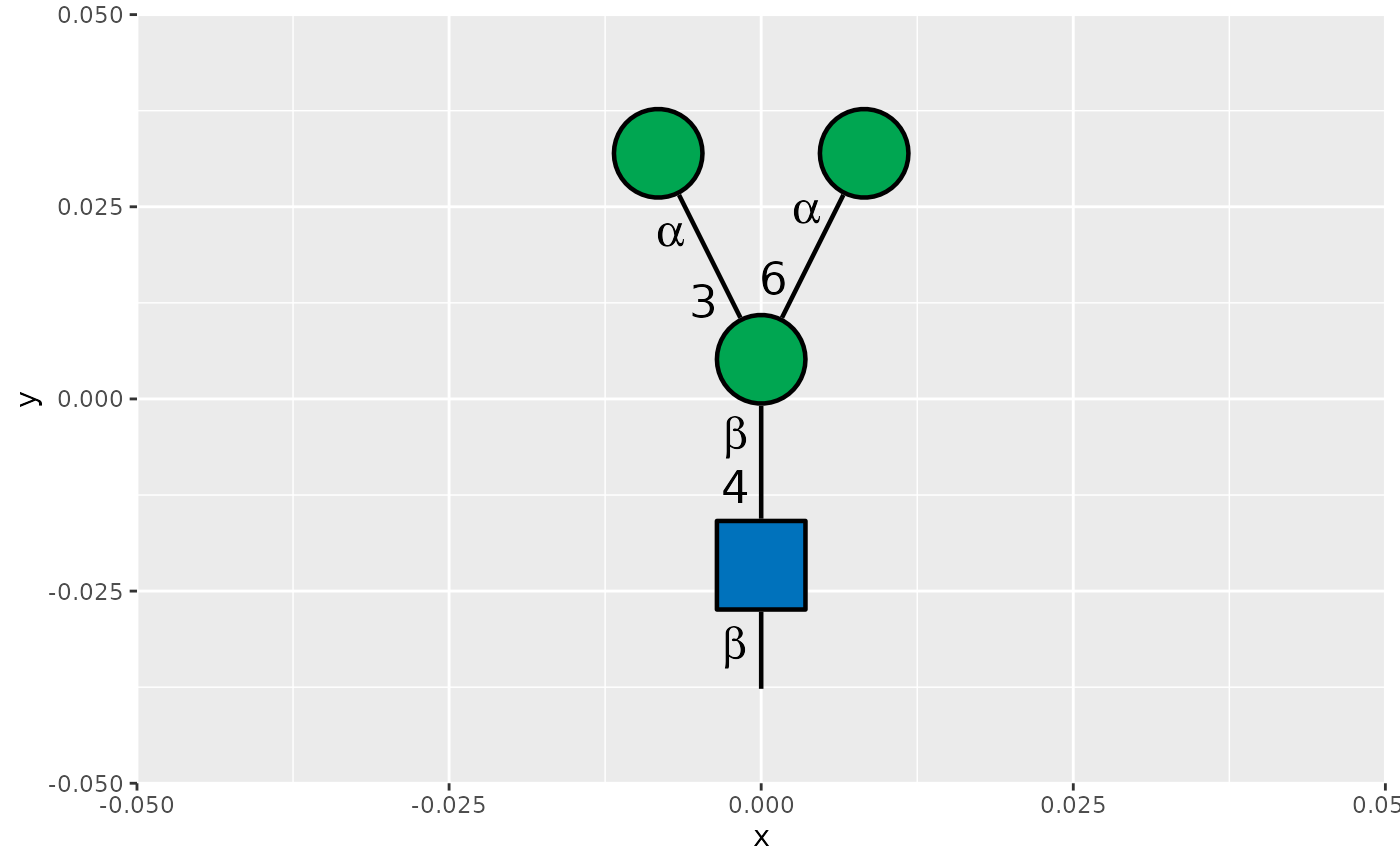

  geom_glycan(orient = "up", hjust = hjust_red_end())


ggplot2::ggplot(
  glycan,
  ggplot2::aes(x = .data$x, y = .data$y, structure = .data$structure)
) +

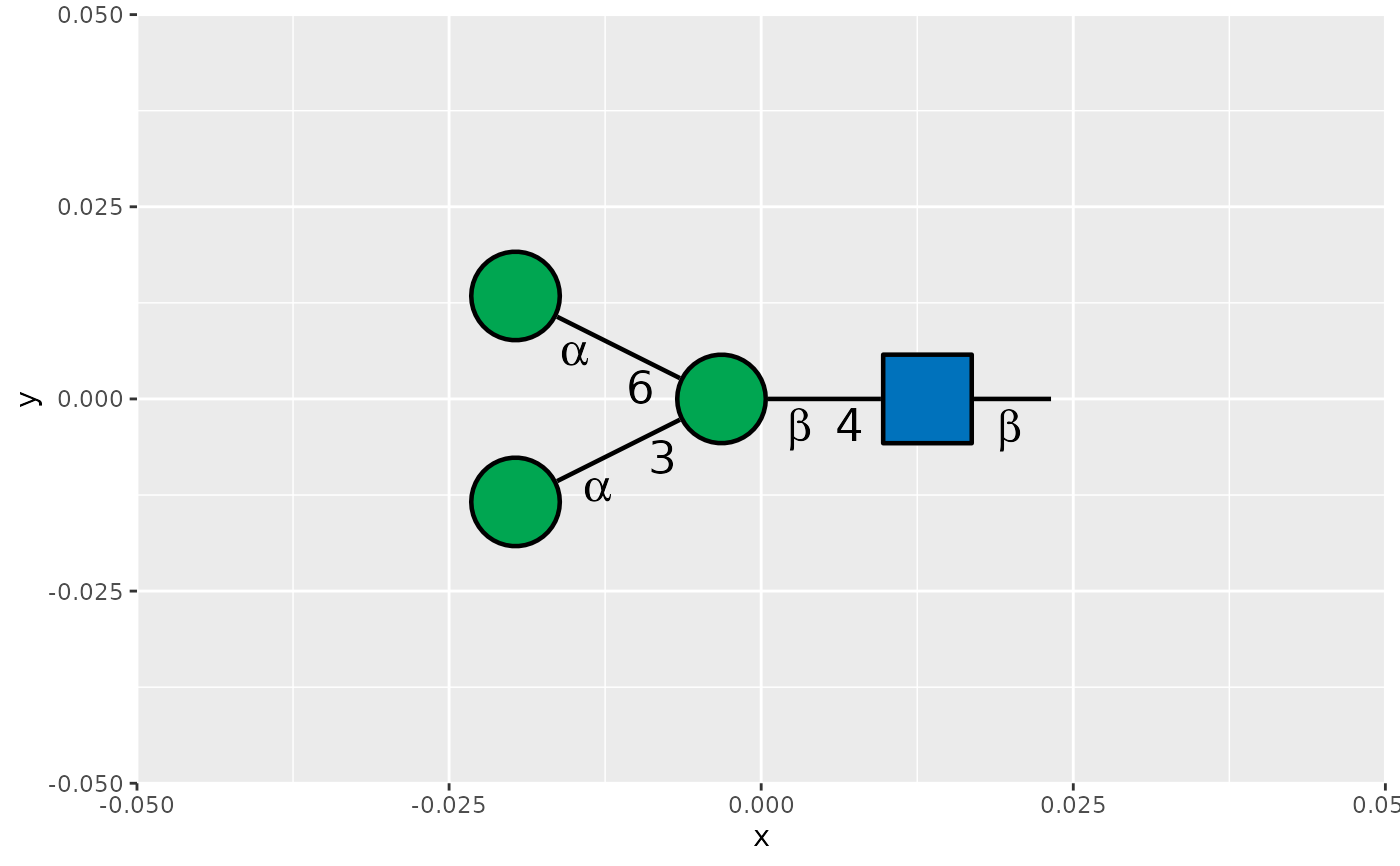

  geom_glycan(orient = "left", vjust = vjust_red_end())
