glydraw 0.8.0

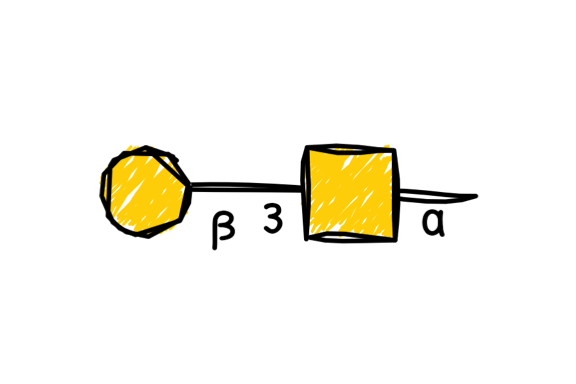

You can now give glycan cartoons a hand-drawn look with draw_cartoon_sketch(). Set a seed when you want the sketch strokes to be reproducible.

library(glydraw)

glycan <- "Gal(b1-3)GalNAc(a1-"
draw_cartoon_sketch(glycan, seed = 1)

Cartoon appearance is configured through reusable style objects. Tune options such as node_size, edge_linewidth, font_family, colors, and red_end with style_glydraw(), or use the style_glygen(), style_snfg(), and style_glycoworkbench() presets. The same styles work with draw_cartoon(), draw_cartoon_sketch(), geom_glycan(), glycan scales and guides, heatmap annotations, and export_cartoons().

style <- style_glydraw(
  node_size = 1.2,
  edge_linewidth = 1,
  font_family = "serif",
  red_end = "~"
)

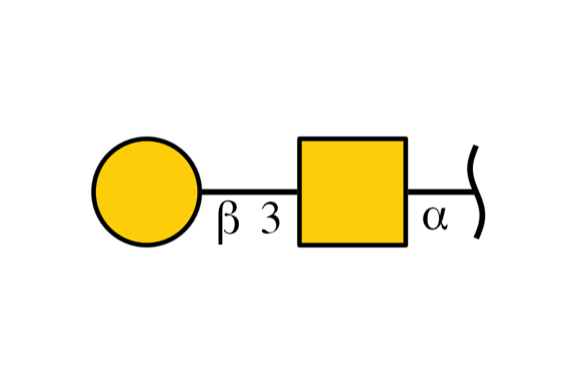

draw_cartoon(glycan, style = style)

glyenzy 0.8.0

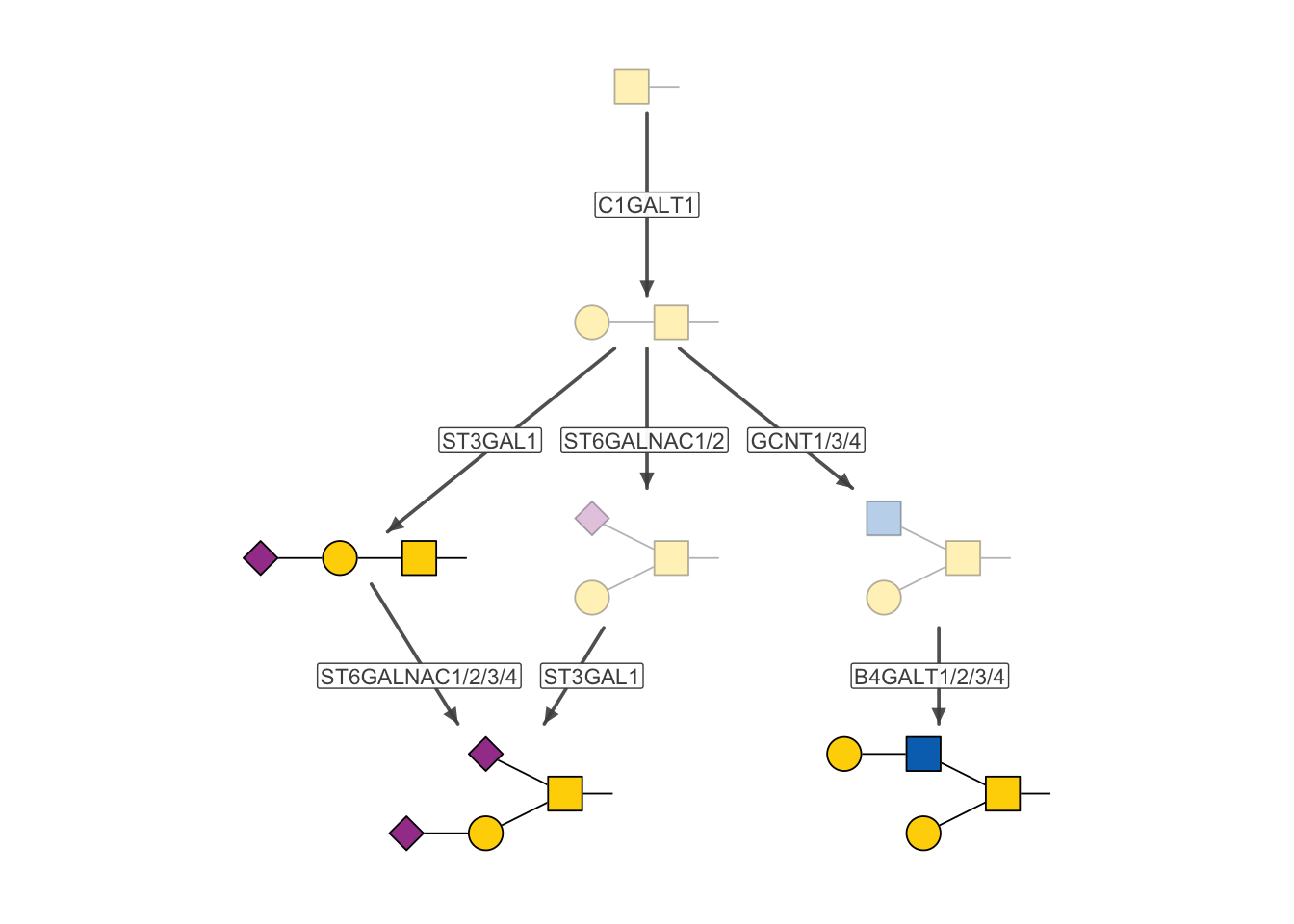

You can now plot biosynthesis networks by simply calling plot or ggplot2::autoplot() now.

library(glyenzy)

glycans <- c(
  "Neu5Ac(a2-3)Gal(b1-3)GalNAc(a1-",
  "Neu5Ac(a2-3)Gal(b1-3)[Neu5Ac(a2-6)]GalNAc(a1-",
  "Gal(b1-3)[Gal(b1-4)GlcNAc(b1-6)]GalNAc(a1-"
)
path <- trace_biosynthesis(glycans)
plot(path)
