Use glycan cartoons as ComplexHeatmap labels

anno_glycan() creates a ComplexHeatmap::AnnotationFunction() that draws glycan cartoons in the order used by a ComplexHeatmap heatmap. The cartoons follow row or column clustering, reordering, and splitting.

Usage

anno_glycan(
  structure,
  which = c("column", "row"),
  side = NULL,
  size = 0.4,
  angle = 0,
  hjust = NULL,
  vjust = NULL,
  nudge_x = 0,
  nudge_y = 0,
  show_linkage = TRUE,
  style = style_glydraw(),
  width = NULL,
  height = NULL,
  show_name = FALSE,
  red_end = NULL,
  orient = NULL
)

Arguments

structure: A character vector of glycan structure strings supported by glyparse::auto_parse() or a glyrepr::glycan_structure() vector. Its order must match the rows or columns of the heatmap matrix.
which: Whether the cartoons label heatmap "column" or "row" observations.
side: Side on which the annotation is placed. Column annotations accept "bottom" or "top"; row annotations accept "left" or "right". Defaults to the corresponding glycan scale position.
size: Positive scalar that uniformly scales each cartoon. Defaults to 0.4.
angle: Rotation in degrees applied to each cartoon independently of its drawing orientation. Defaults to 0.
hjust: Horizontal justification. NULL uses hjust_red_end() for a top or bottom annotation with a vertical orientation, 1 or 0 for a left or right annotation with a horizontal orientation, respectively, and 0.5 for other side-orientation combinations.
vjust: Vertical justification. NULL uses 0 for a top or bottom annotation with a vertical orientation, vjust_red_end() for a left or right annotation with a horizontal orientation, and 0.5 for other side-orientation combinations.
nudge_x: Horizontal adjustment of each cartoon, in millimetres. Positive values move cartoons to the right. Defaults to 0.
nudge_y: Vertical adjustment of each cartoon, in millimetres. Positive values move cartoons upward. Defaults to 0.
show_linkage: Whether to show glycosidic linkage annotations inside the cartoons. Defaults to TRUE.
style: A style_glydraw() object that controls the cartoons' visual appearance.
width: Optional grid::unit() width for a row annotation. NULL calculates the width from the rendered cartoons.
height: Optional grid::unit() height for a column annotation. NULL calculates the height from the rendered cartoons.
show_name: Whether ComplexHeatmap should show the annotation name. Defaults to FALSE because the cartoons normally replace row or column names.
red_end: Reducing-end annotation. NULL, the default, uses red_end from style. A non-NULL value overrides style$red_end.
orient: Glycan drawing orientation. NULL, the default, selects the orientation from side: "up" for "bottom" or "top", "left" for "left", and "right" for "right".

Value

A ComplexHeatmap AnnotationFunction object.

Details

Column annotations use the visual defaults of scale_x_glycan(): vertical cartoons anchored at their reducing ends and aligned along their bottom bounds. Row annotations use the defaults of scale_y_glycan(): horizontal cartoons aligned along their right bounds and anchored at their reducing ends. side should match the heatmap annotation side and defaults to "bottom" for columns and "left" for rows.

The required annotation width or height is calculated from the largest rendered cartoon, including rotation and perpendicular nudging. Supply width for row annotations or height for column annotations to override the calculated size.

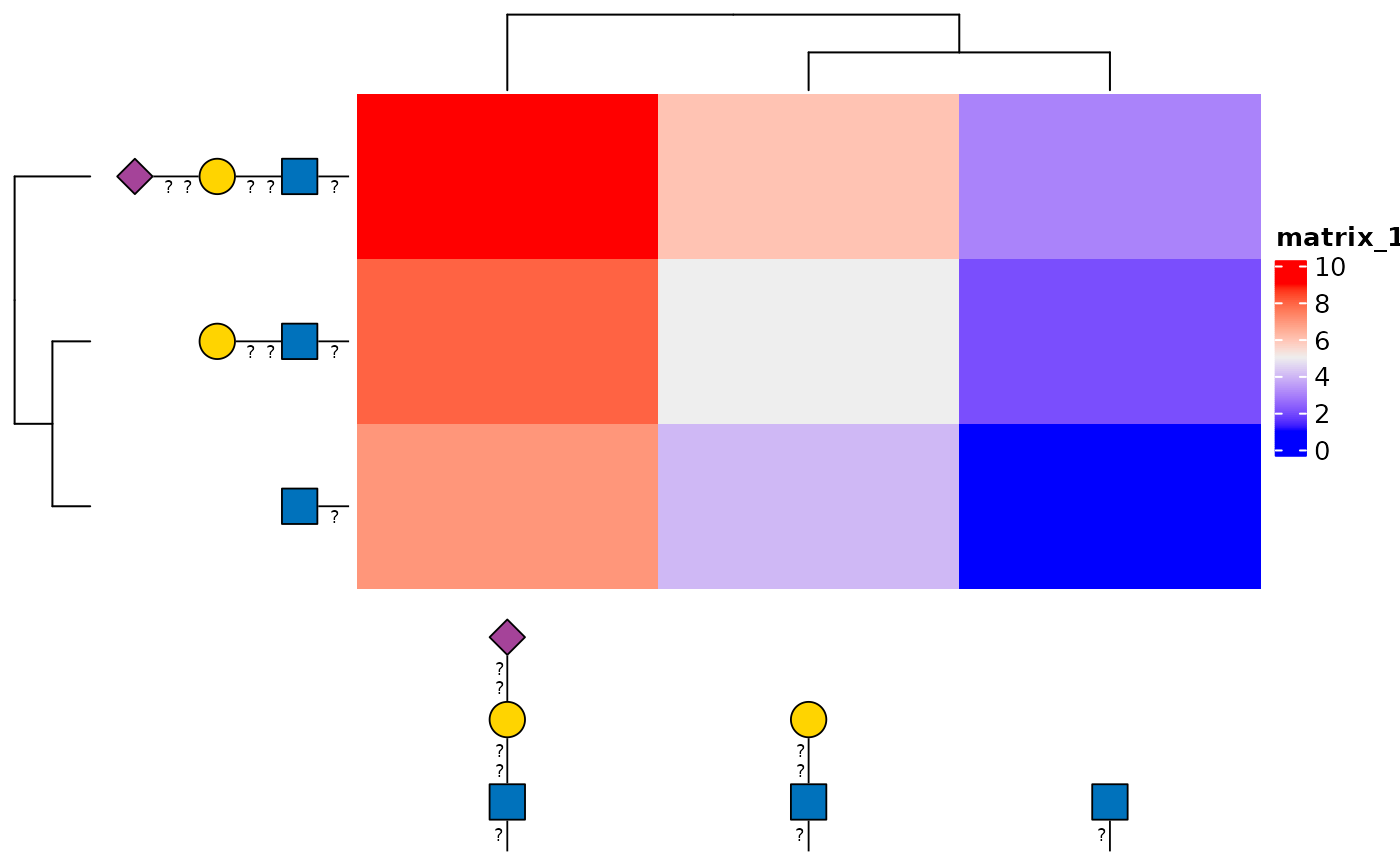

Examples

if (requireNamespace("ComplexHeatmap", quietly = TRUE)) {
  mat <- matrix(
    seq_len(9),
    nrow = 3,
    dimnames = list(paste0("row", 1:3), paste0("column", 1:3))
  )
  structures <- c(
    "GlcNAc(??-",
    "Gal(??-?)GlcNAc(??-",
    "Neu5Ac(??-?)Gal(??-?)GlcNAc(??-"
  )

  ComplexHeatmap::Heatmap(
    mat,
    show_row_names = FALSE,
    show_column_names = FALSE,
    left_annotation = ComplexHeatmap::rowAnnotation(
      glycan = anno_glycan(structures, which = "row")
    ),
    bottom_annotation = ComplexHeatmap::HeatmapAnnotation(
      glycan = anno_glycan(structures, which = "column")
    )
  )
}
